TamaWrap<span class='cotton_plus'></span><sup>®</sup> yellow for cotton
TamaWrap® yellow for cotton
TamaWrap YELLOW Pallet and Roll

TamaWrap® Yellow is an unseparated part of John Deere’s On-Board Module Builder Revolution which amazed the agricultural world when it was first launched back in 2009.

  • The on-board module technology replaces the traditional cotton harvesting system which includes basket harvester, boll buggy and module builder.
  • The entire picking process is carried out by ONE machine and ONE operator!
  • The innovative TamaWrap® Yellow is specially designed to avoid the potential of plastic fragments and the risk of cotton contamination.
  • Assures reliable, automatic packaging for non-stop harvesting.
  • Helps to maintain the quality of cotton in round modules which are exposed to extreme conditions.
  • Helps to eliminate waste.
Need assistance in the field?
Download the Tama Cotton Support App:
Tama Farm Grown Solutions Logo
Pre-Cut Wrap Portions
Pre-Cut Wrap Portions

TamaWrap® is made of pre-cut wrap portions in order to avoid the potential of plastic fragments.

Over the edge coverage
Over the Edge Coverage

Wrap goes over the edge to minimize cotton waste and exposure to rainfall, and holds tight the shoulders of the round module.

UV radiation damage Protection
UV Protection

Modules wrapped with TamaWrap® can be left outside for a period of up to 6 months.

RFID
Radio Frequency Identification (RFID)

Every wrap includes RFID tags to provide the capability to track the individual module through harvesting and processing, all integrated with the electronic systems of the John Deere 7760 | CP690 | CS690 cotton harvesters.

Roll ID
Identification

Each roll has its own ID number located inside the core, and on the leading edge of the first wrap.
Each TamaWrap® has a unique serial number, located on the metallic label of the wrap.

Installation mark
Installation Mark

Every core is marked on its left hand side by black dots on the core and a label inside the core, to assist correct installation

Gin Friendly
Gin Friendly

The TamaWrap® concept eliminates the constant maintenance and cost of the tarp. A savings in the production cost of the ginning process.

Environmentally friendly - Recyclable
Recyclable

TamaWrap® is recyclable.

Z–LOCK® system

Tama’s unique Z-LOCK® system provides 4 major benefits:

  1. The Z-LOCK® system connects and separates each individual wrap on a roll, so the roll is made of 24 “ready to use” wraps.
  2. The Z-LOCK® system assures the next wrap is ready to be fed correctly.
  3. The tapered structure maximizes the durability of the tail in windy conditions.
  4. Two types of specially designed adhesive secure the tail of a wrapped module in tough conditions and minimize the risk of cotton contamination.
TamaWrap® Structure

Every TamaWrap® wrap is made of two segments:

  1. The inner layers are a non-tacky film with particular properties which prevent cotton from sticking to the wrap.
  2. The outer layers are a special formulated film which is tacky on one side only.

The combination of these two types of film ensures that the round module will hold its uniformity for transport and processing.

Wrap width 106 in. (2.70 meters)
Roll diameter 10 in. (25 cm)
Pallet width 2 ft. 3 in. (72 cm)
Core length 9 ft. 2 in. (2.8 meters)
Roll weight Approx. 220 lbs (100 kg)
Wraps per roll 24 wraps
Wrap length 69 ft. (21 meters)
Pallet length 9 ft. 3 in. (2.85 meters)
Rolls per pallet 9 rolls per pallet (216 wraps per pallet)
Pallet height 2 ft. 8 in. (85 cm)
TamaWrap® wrapping process

The wrapping process of TamaWrap® - How It Works

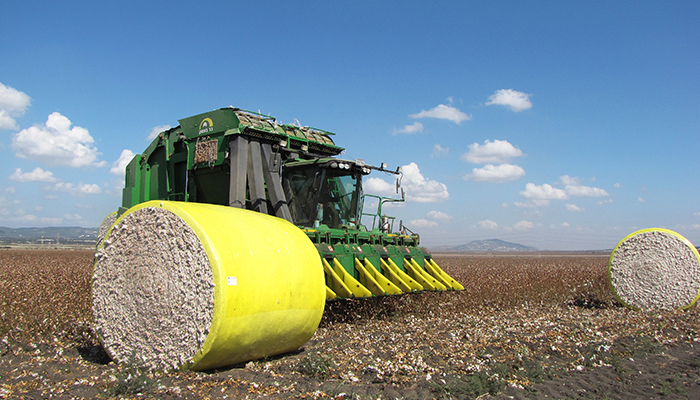

TAMAWRAP® for John Deere 7760 | CP690 | CS690 cotton harvesters

TamaWrap® was developed to complement the John Deere 7760 | CP690 | CS690 cotton harvesters that bale the cotton in a continuous process without stopping the harvester.

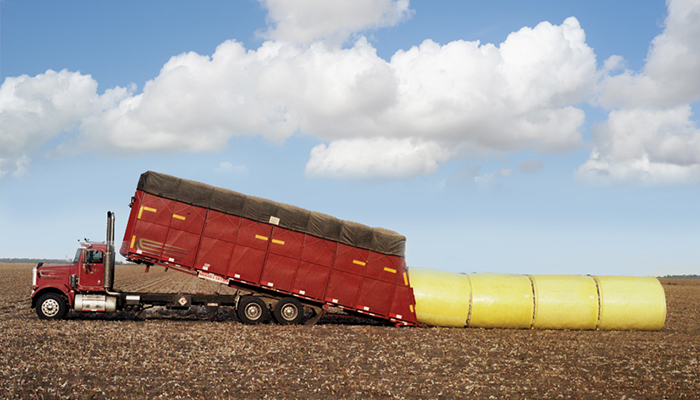

Flipping round modules onto ground with module truck
Fishing For Cotton

Round Cotton Module Rolled into River.

7760 Producer and Ginner Testimonial

Some of today's top cotton producers and ginners explain how the John Deere 7760 has revolutionized the cotton industry.

John Deere C690 Wrap Loading

Procedure for loading Round Module Wrap TamaWrap® into the John Deere C690 cotton harvesters.

2015 John Deere GoCotton: CS690 Cotton Stripper

Video showcases the new features & benefits of the new CS690 Cotton Stripper.

TamaWrap® Roll Loading

TamaWrap® - 360o of cotton wrap technology.

TamaWrap® Gallery
Loading Tama RMW#tm
Cotton Wrap
John Deere 7760 cotton picke
John Deere 7760 cotton picke
John Deere 7760 cotton picke

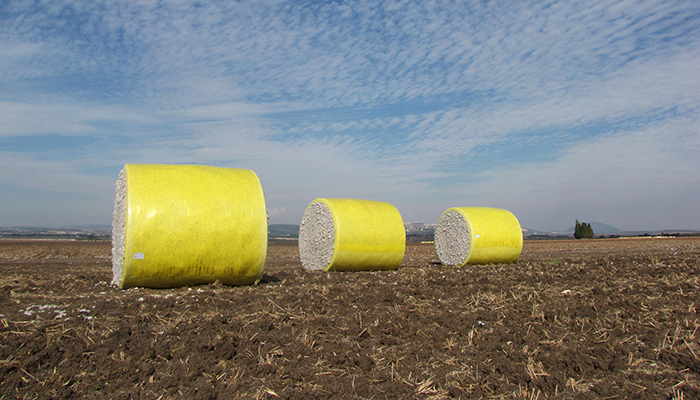

Tama RMW#tm round bales
Tama RMW#tm fields
Tama RMW#tm
Tama RMW#tm round cotton bale
Tama RMW#tm in Cotton gin
Tama RMW#tm with John Deere
Related Articles
Downloads
Downloads
TamaWrap Brochure Australia

Australian Patent No. 2005300259 ; Australian Patent No. 2003292463 ; China Patent No. ZL200380100224.X ; China patent No. ZL200580020614.5 ; Turkish patent No. TR200607638 ; Israel patent No. 180527 ; Israel patent no. 163215 ; Brazil patent No. PI0307327-0 ; India patent No. 254696 ; South Africa patent No. 2006/09928 ; South Africa patent No. 2004/5937
